Xin Hai Xu

Date:2020-07-03 07:36:00 Author:Xin Hai Xu-米乐|米乐·M6（中国大陆）官网登录入口

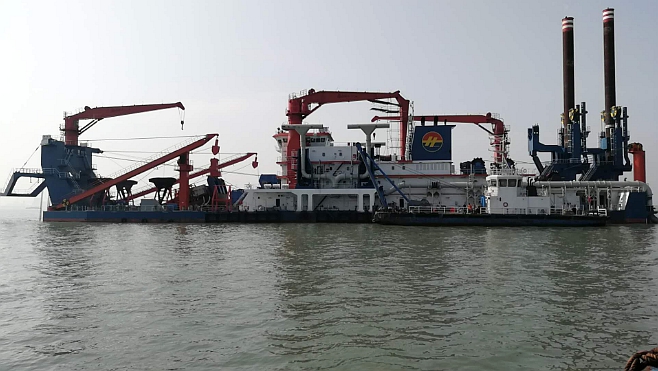

Name of Dredger: Xin Hai Xu
Owner: Huaxia Financial Leasing Co., Ltd
Port of Registry: Nantong
Type of Dredger: Cutter Suction Dredger
Discharge Dia: 1000 mm
Dredging Distance: 20 km
Gross Tonnage/Net Tonnage: 9638/2891
Length Overall/Breath Extreme/Molded Depth: 138.00/28.00/8.00 (m)
Dredging Depth: 36 m
Total Installed Power: 26100 KW, Rimer Power: 5200 KW
In which:    Model                      Device No.   Rated Power
         3516CHDMARINEAUXILIARY TTY00105     1717.00kw
         W12V32                      PAAE285304 6000.00kw
         W12V32                      PAAE285305 6000.00kw
         W12V32                      PAAE285306 6000.00kw
         W12V32                      PAAE285307 6000.00kw
         C18                          GPT05264     383.00kw

As illustrated in the technical specification, this dredger is a Cutter Suction Dredger of 6500 m³/h capacity.
